Why Slip on Flanges For Your Industrial Piping Applications?

Flanges rule many industries like oil and gas, water treatments, aerospace, etc. The smooth and efficient operation of various industrial applications is impossible without them. Slip-on flange is one such flange that plays a vital role in numerous low-pressure applications, ensuring the safety, efficiency, and reliability of the operation. This unassuming yet highly functional piece is often the unsung heroes of various industrial applications.

If you’re curious to learn about slip-on flange, you’ve landed on the right page. Here, we have explained everything about slip-on flanges and why they are the best option for industrial piping systems.

Definition of Slip-on Flanges

Slip-on flanges are flanges that slip on the pipe and connect and don’t require any additional tool for installation. They are popular with name, push-fit connectors. Their design allows direct pipe connections. When connecting pipes with slip-on flanges, insert the pipe into the flange’s inner bore.

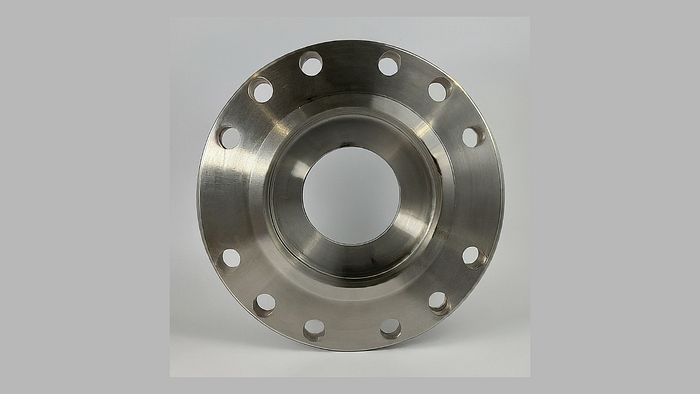

A slip-on flange typically attaches to the pipe by fillet welding, both on the inside and outside of the flange. Slip-on flanges have a flat face and are easily identified by their distinctive shape, resembling a flat disk with a slightly raised collar around the center hole.

Slip-on flanges aren’t suitable for high-pressure or high-temperature conditions and can be helpful in low-pressure applications. The typical applications that can utilize a slip-on flange are with straight pipe connections and those that do not undergo extreme pressure or temperature conditions.

Advantages of Slip-On Flanges

Here are some advantages of slip-on flanges that make them the best option for your Industrial Piping Applications.

1. Easy Installation: Slip-on flanges are simple to install, reducing labor costs and project timelines.

2. Cost-Effective: They are economical, making them suitable for small-scale and large-scale projects.

3. Proper Alignment: The raised collar ensures accurate alignment during welding, reducing the risk of misalignment-related issues.

4. Leak Resistance: The fillet weld on both sides of the flange provides a secure and leak-tight connection.

5. Corrosion Resistance: Slip-on flanges are available in various materials, including stainless steel and corrosion-resistant alloys, making them ideal for harsh environments.

6. Low Maintenance: Once installed, slip-on flanges require minimal maintenance, saving time and resources.

7. Adaptability: Slip-on flanges can be easily modified to accommodate insulation or fireproofing requirements.

8. Smooth Flow: Their smooth interior minimizes turbulence and pressure drop within the pipeline.

9. Reduced Stress Concentration: The design of slip-on flanges helps distribute stress more evenly, reducing the risk of structural failure.

10. Availability: These flanges are readily available from a wide range of suppliers, ensuring easy procurement.

11. Cost-Effective Repairs: In case of damage, slip-on flanges are relatively easy and cost-effective to replace.

12. Standardization: They conform to industry standards, ensuring compatibility with other components.

13. Safety: Slip-on flanges contribute to system safety by preventing leaks and minimizing the risk of accidents.

Industrial Applications of Slip-on Flanges

Let’s check out industrial applications where slip-on flanges are vital:

1. Oil and Gas Industry: Slip-on flanges are suitable for the oil and gas industry. They connect pipes and various other equipment effortlessly. Easy installation and other properties like flexibility make the most preferable solution.
2. Chemical Processing: Slip-on flanges are corrosion-resistant and durable, which makes them suitable to withstand hazardous materials and corrosive substances.
3. Water Treatment: Slip-on flanges connect pipes that carry clean water or wastewater. The leakage-free property prevents contamination.
4. Food and Beverage Industry: These flanges are suitable for the food and beverage industry since they are corrosion-resistant.
5. Shipbuilding: In shipbuilding, slip-on flanges connect various piping systems, ensuring their safe and effective operation at sea.
6. Power Generation: In power plants, slip-on flanges connect pipes transporting steam, cooling water, and other fluids.

Safety Considerations While Using Slip-on Flanges

While slip-on flanges offer numerous benefits, it’s essential to consider safety factors when using them in industrial applications:

1. Proper Welding: Ensure the flange is welded to the pipe to prevent leaks or structural weaknesses.

2. Material Compatibility: Choose materials compatible with the transported substances to prevent corrosion and contamination.

3. Regular Inspections: Conduct routine inspections to identify signs of wear, corrosion, or damage and replace components as needed.

4. Quality Assurance: Source slip-on flanges from reputable manufacturers to ensure they meet industry standards and quality requirements.

5. Follow Codes and Regulations: Adhere to industry standards and local regulations when designing and installing piping systems with slip-on flanges.

Conclusion

Slip-on flange is an all-in-one solution. They may look like small components, but their role in industrial applications is tremendous.

You can choose the right size of slip-on flanges by determining the highest operating pressure and temperature for your system. Contact us if you need custom or standard flanges for your particular application demands.

FAQ

Q.1 What should be kept in mind when installing slip-on flanges to ensure safety?

Proper welding is crucial when installing slip-on flanges. Ensure they are correctly welded to the pipe to prevent leaks and structural weaknesses.

Q.2 How can I source reliable slip-on flanges for my industrial project?

To ensure quality and reliability, source slip-on flanges from reputed manufacturers and suppliers who adhere to industry standards and quality requirements.

Q.3 Are slip-on flanges easy to replace in case of damage or wear?

Yes, slip-on flanges are relatively easy and cost-effective to replace in case of damage.
