What Kinds of ANSI Industrial Flanges Are Typically Used?
Do you know how crucial ANSI industrial flanges are to everyday industrial processes? If you aren’t involved with the PVF industry, you may not have any idea! ANSI flanges are specially designed components that connect pipes, valves, and other equipment.
These components are pretty popular in industries like oil and gas, chemical processing, and aviation. These flanges endure high pressures and temperatures, which make them essential components for various critical applications.
If you want to explore which ANSI flanges are typically used in industrial applications, continue on below before visiting other pages on our website!
What is ANSI?
ANSI stands for the American National Standards Institute, established in 1918. This organization regulates national standards and accrediting systems products, processes, systems, services, and personnel in the United States.To ensure the global impact and relevance of ANSI standards, ANSI works with U.S. government agencies, organizations, and other international entities. They incorporate existing standards from various industries, such as ASME in PVF engineering, into one internationally recognized safety standard.

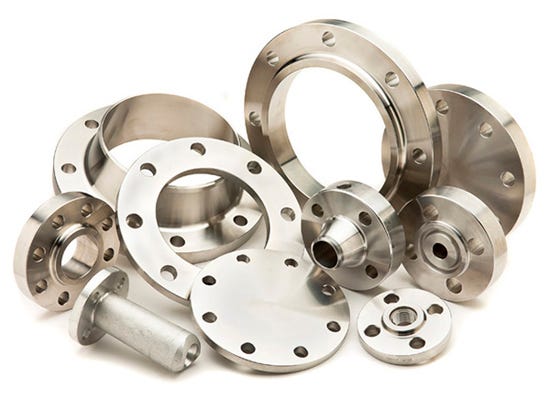

Different Types of ANSI Flanges
Numerous types of flanges are available in the market. They have the unique attributes that differentiate them from others.
Here is the list:
1. Weld Neck Flanges: These flanges have long necks, which distribute stress evenly. This attribute of weld neck flanges makes them perfect for high-pressure and high-temperature applications.
2. Slip-On Flanges: Slip-On Flanges are easy-going and user-friendly. They slide over pipes and are easier to install, making them ideal for low-pressure systems.
3. Blind Flanges: If you need to seal the end of a pipe temporarily or permanently, blind flanges are your go-to option. They work quietly and seal the deal securely.
4. Lap Joint Flanges: Lap joint flanges offer flexibility. They are not welded to the pipe, allowing for easy alignment adjustments and making them suitable for systems with frequent modifications.
5. Threaded Flanges: These flanges are akin to bolts, threaded onto the pipe. They are appropriate for low-pressure applications where easy assembly and disassembly are crucial.
ANSI Flange Standards
Now, let’s delve into ANSI flange standards, the guiding principles that ensure compatibility and safety across industries. The ANSI has established standards that lay the groundwork for the design, dimensions, and performance of flanges. These standards provide that ANSI flanges fit seamlessly into various systems and applications.
ANSI/ASME B16.5
1. It defines the materials, dimensions, and pressure requirements for flanges and flanged fittings from sizes ½" to 24" nominal.
2. It is one of the most, if not *the* most, used standards for industrial pipe flanges in the U.S. and even in various parts of the world.
3. Flanges and flanged fittings must adhere to this standard to be interchangeable and compatible with other ANSI/ASME B16.5-compliant parts.
ANSI/ASME B16.47
1 It details the sizes, kinds, and testing specifications for large-diameter steel flanges (NPS 26 to NPS 60) in weld neck and blind styles.
2. This standard is split into Series A and Series B for flanges with raised faces (R.F. )and flat faces (F.F.).
3. Flanges compliance with standards ensures that they are interchangeable and compatible with other ANSI/ASME B16.47-compliant components.
API 6A
1. This standard sets materials, design, and testing needs for flanges, valves, and other oil and gas production equipment.
2. This global standard applies to high-pressure and high-temperature industrial applications.
3. Compliance with this standard assures that oil and gas production equipment is safe and reliable.
MSS SP-44
1. This standard applies to steel pipeline flanges to determine the dimensions, materials, and testing necessities.
2. This standard fits the oil, gas, chemical, and petrochemical industries well.
3. Compliance with this standard ensures that steel pipeline flanges are interchangeable and compatible with other MSS SP-44-compliant components.
ANSI Flange Sizes and Specifications
Regarding ANSI flanges, size matters — but so do specifications. ANSI flanges come in various sizes, and selecting the right one is critical for a snug fit and secure connection. It’s like finding the perfect puzzle piece to complete the picture. The specifications, including pressure ratings facing types, must align with the requirements of your project to ensure a seamless connection.
Size: ANSI Flanges size range starts from 1/2 inch and goes up to 24 inches. The manufacturer determines the flange’s size by measuring the nominal diameter of the pipe to which it will attach.
Pressure Rating: The pressure rating demonstrates the maximum pressure a flange can endure without failure. ANSI Flanges come in various pressure ratings, ranging from 150 to 2500.
Face Type: R.F. and F.F. are the two different face types available for ANSI flanges. The flat face type is appropriate for low-pressure applications with a rubber/neoprene gasket, while the raised face type offers a better seal with a stronger metallic gasket.
Material: ANSI Flanges come in different materials like stainless steel, carbon steel, and alloy steel. You can choose the flange material based on the application and the environment.
Gasket Type: ANSI Flanges can utilize distinct gaskets, including spiral-wound, ring-joint, and flat gaskets. The use of gasket types depends on the industrial application and the pressure rating of the flange.
Conclusion
ANSI industrial flanges are vital for joining pipes, valves, and other equipment. They are safe and effective. Their industry use depends entirely on their ability to withstand high-pressure and high-temperature environments and their adaptability to various applications.
Manufacturers construct these flanges following stringent regulations and standards to ensure quality and safety, as the ANSI standard requires.
Feel free to reach out if you need any assistance with ANSI Flanges.
FAQ
Question 1: In which industrial applications are ANSI industrial flanges commonly employed?
Answer: ANSI industrial flanges find applications in a wide range of industries, including construction, manufacturing, water and sewage systems, automotive, renewable energy, and more, where they provide secure connections for various fluid and gas systems.
Q.2: What steps should be taken to install and maintain ANSI industrial flanges properly?
Answer: Proper alignment, correct bolt tightening, gasket selection, regular inspection for wear or corrosion, and using the appropriate torque when tightening bolts are essential for the installation and maintenance of ANSI industrial flanges.
Q.3: How do ANSI industrial flanges contribute to the seamless functioning of industrial systems?
Answer: ANSI industrial flanges are integral to industrial systems, ensuring secure and leak-free connections. They are vital in maintaining system integrity, efficiency, and safety, making them indispensable components in various industrial applications.
