Top 10 Applications for Blind Flanges

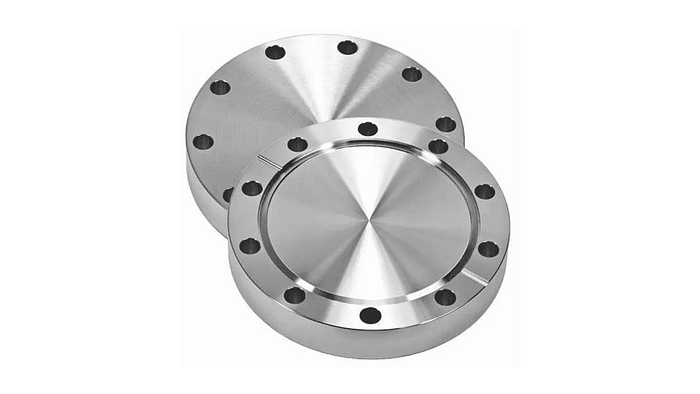

Blind flanges are essential flanges that find common use in many industrial setups. They are flat, solid disks employed for sealing the ports of the pipes, valves, or pressure vessels.
Even though they are quite basic in design, blind flanges are quite essential in aspects such as safety, service, and repair of various systems.
This guide will, therefore, review the ten typical applications of blind flanges and why they are so valuable.
1. Sealing the End of Piping Systems
It is also important to note that one of the many applications of blind flanges is to act as an end closure for a piping system. A blind flange is used in a pipeline when the pipeline is not in use or needs to be shut down for a while, as it seals off the end of the pipe to prevent the flow of liquids or gases. This is especially helpful during maintenance, repair, or during the planning of future expansion of the building.
2. Pressure Testing
During or before the commissioning of a piping system, it becomes necessary to check for leaks and the ability of the system to withstand pressures. In such tests, blind flanges are better for sealing certain areas of the pipe to exert pressure on the system and investigate possible flaws. This makes it possible to check that the system is safe and ready for usage.
3. Temporary Closure of Piping Systems
Sometimes, it could be necessary to isolate a piping system without fully disassembling it. Blind flanges come in handy in such situations as they offer a quick solution to the problem. Well, by fitting a blind flange at the end of a pipe, the system is effectively closed off until the next time it’s required. This is especially helpful for applications in oil and gas flanges pipelines, which undergo regular alterations and additions.
4. Connection to Valves and Gauges
Blind flanges are also used in piping systems to provide access means or connection points for valves, gauges, or any other equipment, but without flow through. It is useful in measuring the pressure or flow rate of the system without interfering with the pipeline. By using a blind flange, engineers can safely attach these devices and remove them when necessary.
5. Isolation of System Sections
One of the most common situations during maintenance and repair work is to disconnect certain segments of a piping system. Blind flanges can make this possible because they allow closure of the area that requires attention. This enables engineers to carry out their work efficiently without interfering with the other parts or causing downtime in the process or otherwise accidents.
6. Shutdown and Start-up Operations
There are many industries where pipelines are shut down and then started up from time to time, and blind flanges are best to use effectively to control them safely. During a shutdown, blind flanges are best for fitting and blocking off those areas to prevent leakage and spillage from taking place. When it’s time to restart, you can remove the flanges and easily reactivate the system.
7. Flange Testing Assemblies
For instance, blind flanges are best to use when testing assemblies to guarantee the suitability of a piping system. In the case of pipes or pressure vessels like pipes, engineers can close from both ends. Thus, the pressure applied will have an option of identifying if they are leaking or not. This is useful in avoiding potential problems before the system begins to operate.
8. Pipe Expansion
This means that in most industries, many pipes are being added or changed around the system. Blind flanges are useful in the closure of a pipeline section where a particular section of the pipeline is not in operation till required. It also helps in expanding the system in the future without any modifications or new installations to add to the existing structure.
9. Connection to Pressure Gauges
They are important in measuring the pressure within a piping system. These gauges are usually connected to blind flanges so that fluids and gases cannot pass through the connecting flange. This makes it possible to monitor the pressure without having to interfere with the functioning of the system in place.
10. Storage of Fluids or Gases
Blind flanges are best for safely handling fluids or gases in vessels or tanks. A blind flange can also serve the purpose of sealing the ends of the container to ensure that its contents are safe from leaks and contamination. This is particularly the case in industries such as chemical processing, where safety and containment are critical.
Selecting the Right Blind Flange
Proper selection of blind flange is critical for proper functioning and safety of the system in question. In selecting a blind flange, it is important to consider the material, size, and pressure class of the flange required. One should also seek advice from experts who will guide on the most suitable flange to use on the pipe.
Conclusion
Blind flanges are among the most common and useful products in the industrial production line. They are best for sealing pipe ends, pressure testing, and temporary plugging on pipelines, pressure vessels, and other systems, and they perform a major function in safeguarding the integrity of systems. Knowing the various uses of blind flanges will help you to be in a position to maintain and run the system most effectively.
