Stud Bolt for Pipe Flanges: What It Is and How It Works?
In pipe flanges, it is critical always to achieve the best connection. It is important to note that one crucial element in achieving this link is the stud bolt.
However, before we look at specifiers of products that require pipe flanges, let us first understand what a stud bolt is and its function. To make it easier and help you understand this in simpler terms.
What Is a Stud Bolt?
A stud bolt is a representative of a group of fasteners. It is not similar to normal bolts as it lacks a head at its end. However, what is used is a long bar which has screw threads like a bolt at both ends. These threads enable the nuts to get screwed at both ends and fasten the bolt.
Stud bolts are widely known and applied in industries and other sectors. They assist in joining parts such as flanges, which are circular metallic rings used in the joining of pipes. The major function of a stud bolt is to ensure that these flanges are tightly closed so that they do not develop leakages.
How Does a Stud Bolt Work?
It is easy to use a stud bolt. Here’s a step-by-step explanation of how it works with pipe flanges:
1.Alignment
The first one is to position the flanges. It is necessary that the holes in the flanges get accurately aligned with each other. This alignment is important because the stud bolt must be able to pass through these holes in order to fasten the flanges together.
2. Insertion
Upon positioning, the stud bolt gets passed through the respective holes. Since it has threads on both ends of the bolt, it does not need to rotate like the normal bolt. Instead, it just glides right on through.
3. Tightening
Once the bolt gets inserted, nuts get tightened on each end. The nuts get tightened using a wrench. The aim is to have the nuts apply the right amount of force on the flange to make the flanges come close together.
4. Sealing
When the nuts get tightened, the bolts compress the flanges on the two plates to get joined together. This pressure ensures no fluid or gas escapes as it forms a compressive ring with no gaps. Whenever the bolt gets tightened, the seal becomes more and more secure and tighter.
Why Are Stud Bolts Important?
Stud bolts play a vital role in many industries. Here’s why they are important:
1.Durability
Stud bolts get ready using materials such as stainless steel or carbon steel materials. These materials are also capable of withstanding high pressure and extreme temperatures. This makes them ideal for use in conditions that may be hazardous, such as oil and gas pipelines.
2. Easy Installation
Stud bolts, in general, are quite easy to install. They are easier to use than other types of fasteners since they require minimal turning or twisting to join material together. This makes the installation process easy and fast.
3. Reliability
A stud bolt is fixed permanently into position once it gets tightened. This reliability helps to maintain the integrity of the joint between the flanges and withstand stress. This is relevant in avoiding leaks and ensuring the safe flow of fluids through the pipeline.
Common Uses of Stud Bolts
Stud bolts are present in many different industries. Some of the most common include:
1.Oil and Gas

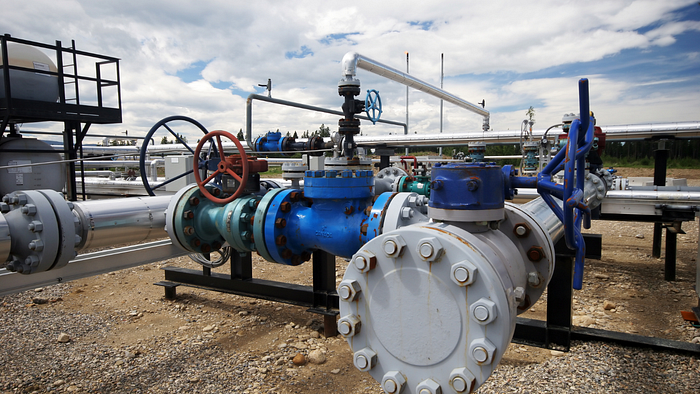

In this industry, it is common to find pipelines that transport fluids under high pressure. Stud bolts are present in the maintenance of these pipelines to ensure they remain secure and do not leak.
2. Chemical Processing
Stud bolts serve the purpose of joining pipes containing hazardous or erosion-sensitive materials in chemical plants. The strength of the bolts helps guarantee that these pipes remain closed.
3. Power Generation
Power plants rely on stud bolts to connect pipes that transport steam, water, or other fluids under high pressure.
Best Practices for Using Stud Bolts
It’s essential to follow some basic guidelines to get the best results,:
1.Choose the Right Material
When choosing the stud bolts to use, you should note that they get ready using materials suited to your application. For instance, stainless steel is the best in corrosive environments.
2. Use Proper Torque
You also need to ensure that you apply the right amount of force when tightening the nuts. This helps seal the flanges as tightly as possible without causing any harm to the bolt in any way.
3. Regular Maintenance
Nothing lasts forever, and that includes even the highest-quality bolts. It is also crucial to perform periodic checks of bolts for signs of wear/damage and ensure proper fitment in order to secure the connection.
Conclusion
Stud bolts are small in size, but they carry big responsibilities, especially in industrial piping systems. They ensure that pipe flanges are firmly fixed in place and withstand a great amount of force.
To avoid situations where your piping systems become a disaster, you should familiarize yourself with the functionality of stud bolts so you can fix your piping correctly. Ensure you use the correct material, install them correctly, frequently check the bolts, and repair them when necessary.
