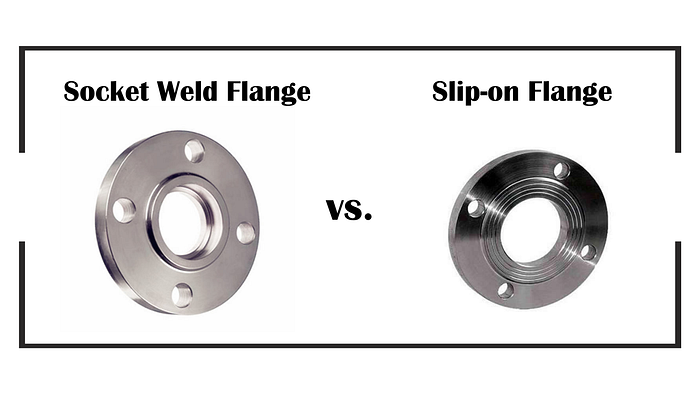

Socket Weld Flanges vs. Slip-on Flanges: A Comparison

Selecting which flange to use is very important to enable the system of handling pipes to work effectively and safely. Socket weld flanges and slip-on flanges are two types of products available in the market, each having its own advantages over the other. This blog aims to provide a comparison of these two categories of flanges.

Some aspects to be covered include design, uses, pros, and cons. At the end of this blog, you will be able to determine the applicable flange type that will help your piping system to run efficiently.

Here we are, and it is high time we got down to the specificities and made a wise choice.

What are Socket Weld Flanges?

Socket weld flanges are used in pipe systems that require smaller pipes to pass through, most especially pipes that are up to two inches in diameter. They will have a recess, on which the pipe is fitted before it is joined by welding. This creates a strong, leak-proof connection.

Design and Structure

Socket weld flanges have a recessed area, or socket, into which the pipe gets inserted. The pipe then gets welded around the top edge.

Common Applications

These flanges are best for high-pressure systems such as hydraulic and steam lines.

Advantages

• Leak-proof connection
• Strong, durable joint
• Ideal for high-pressure applications

Disadvantages:

• Not suitable for larger pipes
• Requires welding, which can be time-consuming

What are Slip-on Flanges?

Slip-on flanges are more adaptable than socket weld flanges, and also require less effort when it comes to fitting them. They slide over the pipe and then the edges are welded inside as well as outside avert any possible leakage.

Design and Structure

Slip-on flanges are usually larger in diameter compared to those of the used pipe, thus they are slipped over the pipe end. They then are welded into position.

Common Applications

These flanges normally exist in low-pressure systems, and they are best in use for general water systems.

Advantages

• Easier to align and install
• Less welding required
• Cost-effective

Disadvantages

• Weaker joint compared to socket weld flanges
• Not ideal for high-pressure systems

Key Differences Between Socket Weld and Slip-on Flanges

1. Installation Process

Socket Weld Flanges: The pipe connects to the socket, and a weld comprises around the top of it. This needs accuracy in position and joining through welding.

Slip-on Flanges: The flange slips over the pipe, and then both the inside and outside edges are welded. This process is generally quicker and easier.

2. Strength and Durability

Socket Weld Flanges: These flanges make a significantly leak proof seal which makes it particularly suitable for high pressure systems.

Slip-on Flanges: While it may be easier to fit these types, its positive pressure holding capacity is not as efficient when compared to the socket weld flange type.

3. Cost Considerations

Socket Weld Flanges: Less costly as they are easier to lay and require minimal welding.

Slip-on Flanges: These are more cost-effective due to easier installation and less welding.

4. Pressure and Temperature Ratings

Socket Weld Flanges: Designed for high pressure and high temperature.

Slip-on Flanges: Best used where the pressure and temperature are not very high.

5. Suitability for Different Piping Systems

Socket Weld Flanges: Best for systems where strength and leak-proof joints are critical.

Slip-on Flanges: Ideal for general-purpose, low-pressure systems where ease of installation is a priority.

How to Choose Between Socket Weld and Slip-on Flanges

When deciding between socket weld and slip-on flanges, consider the following factors:

1. Pressure and Temperature Requirements

Socket weld flanges are often preferable while dealing with pipes and pressure systems that exert high pressure and find use at high temperatures. However, for conditions where pressure and temperature parameters are not as high, simple slip-on flanges are enough.

2. Pipe Size

However, socket weld flanges are most suitable for pipes up to 2 inches in diameter, and slip-on flanges are most suitable for larger pipes.

3. Installation Time and Cost

All in all, if the installation is easy and the cost is the most important factor, slip-on flanges are typically preferred.

4. Application-Specific Needs

Think about the conditions under which it operates or the demands of the particular task it has to perform. For instance, hydraulic or steam uses could take advantage of the socket weld flange strength while general plumbing uses can handle slip-on flanges.

Conclusion

In summary, the socket weld flanges and slip-on flanges are also useful in industrial applications and both have their benefits of use. Socket weld flange gives perfect seamless and leak-proof fit for joining, special for high-pressure systems, while slip on flange are quick and cheaper for low-pressure systems.
