Exploring Various Gasket Types for Flanges

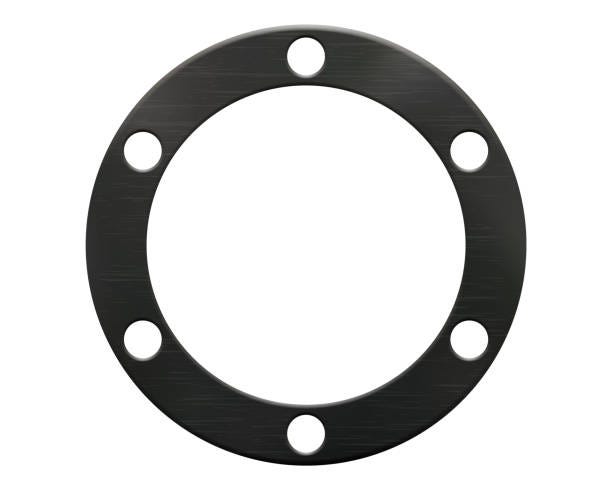

One of the vital parts of the industrial system is the flange gasket, which is the most crucial element in connecting pipes, valves, and different tools. Gaskets play an essential role and are present between the flanges, creating a leak-proof connection between specific elements.

Choosing the proper shape of the gasket is important for a consistent, long-lasting seal. This blog will help you recognize the most common gasket kinds for flanges and which one works properly for your utility.

What Are Gaskets and Why Are They Important?

Gaskets are thin substances that create a seal between connecting surfaces. They save your gas or liquid from leaking out by filling in any small gaps or irregularities among the flanges. Without a right gasket, the flange connection may additionally fail, mainly due to high-priced downtime and repairs.

There are many types of gaskets, each designed to work under unique situations. The best gasket for your needs depends on factors like pressure, temperature, and the type of fabric the gasket can be in touch with.

Common Gasket Types for Flanges

Let’s look at some of the most popular gasket types used in flange connections.

1. Spiral Wound Gaskets

Spiral wound gaskets comprise winding thin metallic and filler material together in a spiral form. These gaskets are best known because they thoroughly manage high stress and temperature. They are strong and flexible, making them appropriate for applications in industries like oil, fuel, and chemical processing.

Advantages:

• Excellent for high-pressure systems.
• Works well in both low and high temperatures.
• Long-lasting and durable.

Disadvantages:

• It can be more expensive than other gasket types.
• Not ideal for low-pressure systems.

2. Ring-Type Joint (RTJ) Gaskets

RTJ gaskets are solid metal gaskets that match into a groove on the flange face. They offer a very tight, metal-to-metallic seal and are common in oil and fuel industries where severe pressure is present. RTJ gaskets are long-lasting and dependable in harsh situations.

Advantages

• Strong seal for high-pressure environments.
• Resistant to extreme temperatures.
• Long service life.

Disadvantages

• Requires special grooved flanges.
• Not suitable for all industries.

3. Non-Metallic Gaskets

Non-metallic gaskets get ready from substances like rubber, PTFE (Teflon), or graphite. These gaskets are softer than steel gaskets and are present in systems with lower pressures. They are bendy and adapt to uneven flange surfaces, making them a very good choice for less demanding applications.

Advantages:

• More affordable than metal gaskets.
• Easy to install and handle.
• Good for low-pressure systems.

Disadvantages:

• Not suitable for high-pressure or high-temperature applications.
• Shorter lifespan compared to metal gaskets.

How to Choose the Right Gasket for Your Flange

Selecting the right gasket for your industrial flanges depends on several factors:

1.Pressure and Temperature

If your system operates under high pressure or excessive temperatures, you’ll need an extra-long-lasting gasket like a spiral wound or RTJ gasket.

2. Material Compatibility

Make sure the gasket material is compatible with the fluid or gas passing via the system. For example, a few chemical compounds can cause certain gasket materials to degrade.

3. Environmental Conditions

In corrosive environments, a non-metal gasket like PTFE can be a better option because it resists corrosion.

4. Industry Standards

Some industries have unique requirements for gasket substances. For example, food and beverage industries regularly require non-toxic, food-grade gaskets.

Conclusion

Choosing the proper flange gaskets for connections is critical to make sure that system is secure and efficient. By understanding the different types of gaskets — spiral wound, RTJ, and non-steel — you may make an informed selection based on the needs of your specific application.

Always bear in mind elements like stress, temperature, and material compatibility while deciding on a gasket.

If you want to assist in finding out which gasket works well with your system, consult a professional for expert recommendation. Proper gasket choice can save time and money and prevent potential issues down the line.
