Everything You Need To Know About Carbon Steel Plate Flanges

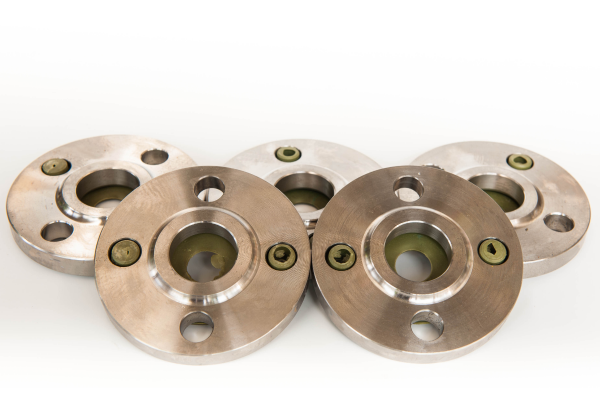

What Are Carbon Steel Plate Flanges?
Carbon steel plate flanges play a crucial role in most significant plant piping systems. They are applied to join pipes, valves, pumps, and other equipment to ensure a tight, leak-proof joint. Carbon steel is present in the manufacture of these flanges, and it can handle pressures and high temperatures.
Composition of Carbon Steel Plate Flanges
Carbon steels are basically iron and carbon compounds containing a little bit of other materials. This material presents good strength; therefore, it proves useful in manufacturing flanges that can withstand certain conditions. Carbon steel plate flanges, on the other hand, do not contain chromium, and therefore, they are cheaper, although they may need a coating to prevent them from rusting.
How Do They Differ from Other Flanges?
Compared to other flanges, such as stainless steel or alloy flanges, carbon steel plate flanges are of a separate material and have a lower price level. They are cost-effective mostly because of their composition and their use, which are present where high strength and resistance to wear are needed. However, they are more susceptible to corrosion and may require further finishing, painting, or coating in some applications.

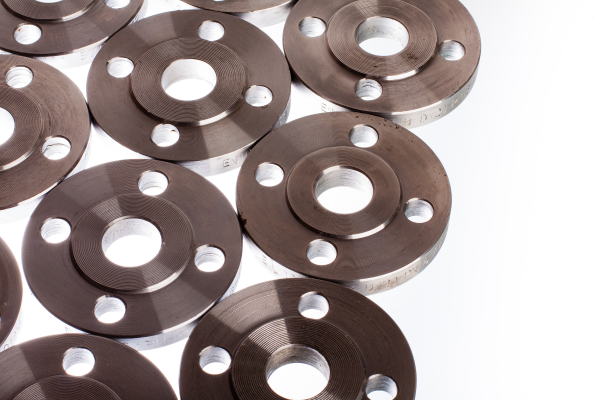

Types of Carbon Steel Plate Flanges
There are several types of carbon steel plate flanges, each designed for specific uses:
- Slip-On Flanges
Slip-on flanges completely encircle the pipe and then intends to slide over the end of the pipe. They then get welded in place. These flanges are easy to install and are applicable for low-pressure ranges only. Their simple design makes these flanges a cost-effective option for many industries.
2. Blind Flanges
A blind flange is a kind of flange used to seal one end of a piping system. They do not have any gaps in the pipes and are employed to shut a pipeline or valve. These flanges are mainly utilized in pressure systems to ensure tight and durable fit.
3. Threaded Flanges
Threaded flanges, for instance, are attached to the pipe through screwing, which eliminates the need for welding. Most of them apply to small pipes and low-pressure projects. Threaded flanges are ideal for processes that cannot accommodate welding or where welding might not be advisable.
4. Weld Neck Flanges
Weld neck flanges come with a long tapered hub that gets welded on the pipe. This is a good design in terms of strength, and the layout suits operation at high pressure and temperature. These are widely present in the oil and gas industry.
Common applications in industries
Carbon steel plate flanges are present in many industries due to their strength and durability. Here’s a quick look at where they are commonly present:
- Oil and Gas
The oil and gas industry is one of the major industries that heavily relies on carbon steel plate flanges. They assist in joining pipes and equipment, thus enabling proper circulation of oil and or gases. Their strength is much needed for times when even higher pressures are present.
2. Construction
In construction, these flanges are present in structures. They join steel beams and columns that offer rigidity or support. This is because their reliability determines sound and secure construction.
3. Water Treatment
Carbon steel plate flanges are present in water treatment plants to join pipes and tanks. They assist in controlling the movement of water through different phases of purification. They include features such as material and corrosion resistance that guarantee their long-term operation.
4. Chemical Processing
These flanges are also present in chemical processing plants. They work with corrosion products and ensure the preservation of pipelines and reactors.
Carbon steel plate flanges are very useful and utilized in several industries. Due to these characteristics, they are very crucial in many industrial processes because of their ability to perform under varying pressures and conditions.
Key Features and Benefits of Carbon Steel Plate Flanges
Carbon steel plate flanges offer several key elements and advantages that make them a popular choice in many industries:
- High Tensile Strength
Carbon steel plate flanges have very high tensile strength. It can operate under high pressure and heavy loads to ensure it meets the complicated demands of any application.
2. Resistance to Wear
These flanges are strong and designed to withstand wear and tear, and they can work under adverse conditions. This makes them ideal for use in such areas as the oil and gas-related industries where equipment gets subjected to very harsh conditions.
3. Cost-Efficiency
In comparison to other types of materials, carbon steel is more considerable to be affordable. For this reason, carbon steel plate flanges are a relatively cheaper investment when it comes to large piping systems.
4. Easy Installation
Most of the carbon steel plate flanges, including slip-on and threaded flanges, are usually easy to install. This is because they save time and costs of installation and are therefore commonly used in so many industries.
5. Versatility
Carbon steel plate flanges are available in different types and dimensions, and they serve various purposes. These are present in water treatment, manufacturing, and even construction to prove versatility and variety.
Carbon steel plate flanges are highly effective in terms of performance and durability and they serve in different plant applications. It features tough and durable materials, making it valuable for various applications due to the flexibility of types and looks. Knowing their types, features, and benefits will assist one in applying the right flange for the right application.
How to Identify Quality Carbon Steel Plate Flanges
- Look for Certifications
Ensure that the flange recognizes types such as ASME, ASTM, or ISO. These certifications make sure that the product complies with the standard quality, safety, and performance benchmarks in the market.
2. Inspect the Material Grade
The flange used should be of high-grade carbon steel. Search for more texts or labels that will prove that the material is, for example, A 105 or A350 LF 2, which means that it is strong.
3. Evaluate the Manufacturing Process
High-quality flanges are produced from forgings and accurately machined. Inquire the manufacturer about how they make their products. Check on the flange finishes and ensure they are smooth. Their dimensions should be uniform and should not have any defects.
4. Check for Reputable Manufacturers
Purchase from reputable companies that have good standing in the market. Identify established companies that manufacture good carbon steel flanges. Read reviews and ask for recommendations.
5. Verify Testing and Quality Assurance
Confirm that flanges have undergone quality tests such as pressure and leakage, among others. It is better that the supplier provide a quality assurance certificate as proof of the product’s reliability.
Cost Factors and Budget Considerations
- Initial Cost of Flanges
Carbon steel plate flanges are considered to be cheap compared to other materials of equal quality. However, the prices are flexible depending on the material’s size, type, and grade. While higher-grade flanges may be more expensive, the benefits they provide in terms of service and durability may be worth it.
2. Installation Costs
Consider its cost implications, particularly when it comes to installation. A skilled professional in installation ensures that there are no future problems and also helps minimize overall costs. This implies that poor installation can result in leakage, corrosion, or failure of the flange.
3. Long-Term Value
Purchasing high-quality flanges will prove to be financially beneficial in the long run. High-quality and certified flanges are stronger and, therefore, will not require frequent replacement, thus cutting costs in the long run.
By reflecting on these tips, you will be able to find genuine carbon steel plate flanges that will provide you with the best value for your money.
Future trends in Carbon steel flanges
The future of carbon steel flanges is evolving rapidly. Here are some key trends to watch:
- Advancements in Materials
New alloys and composites are coming up with better strength and duration. These materials can also withstand higher pressure and adverse temperatures as well.
2. Eco-Friendly Production Methods
Many operations in the industry are gradually becoming environmentally friendly. Companies are implementing strategies that help to minimize emissions and carbon waste. It is now common to see materials getting recycled.
3. Evolving Industry Standards
Currently, the carbon steel flanges are undergoing changes in their standards due to the enhancement of safety measures and higher performance demands. By compliance with quality, it is likely that quality and reliability are achievable.
4. Smart Technology Integration
Sensored flanges are on the horizon. These smart flanges can check the performance level and sense any problem during operation, improving the maintenance and safety of equipment.
5. Customization and 3D Printing
The advancement in the use of 3D printing technology is facilitating the development of more elaborate flange designs. This technology helps minimize waste and can quickly manufacture parts with complex geometry.
All these trends suggest that the future of carbon steel flanges is a more professional, environmentally friendly, and highly efficient one. Pay attention to these trends to remain competitive in this industry.
Conclusion
It is essential to know about carbon steel plate flanges while selecting flanges for a project or application. These flanges have excellent uses because of their durability, unmatched lifespan, and relatively low cost. Understanding the various categories and key characteristics, as well as caring for them, is a good starting point. Always consider what your project will require before purchasing anything. Choosing the best flange would mean safety as well as efficient functioning in the long run. Be ready to learn, act wisely, and achieve effective results when using carbon steel plate flanges.
FAQs
- What are carbon steel plate flanges used for?
Carbon steel plate flanges connect pipes, valves, and other equipment in the oil, gas, and water treatment industries. They provide a secure seal, making sure systems are leak-proof and safe.
2. How do I choose the right carbon steel plate flange?
You should know about factors such as pressure rating, size, and material grade. Ensure that the flange adheres to industry standards or your application requirements in terms of strength and safety.
3. Are carbon steel plate flanges durable?
Yes, it is correct that carbon steel plate flanges are highly durable. They are solid and withstand high heat and pressure, making them suitable for various industries.
