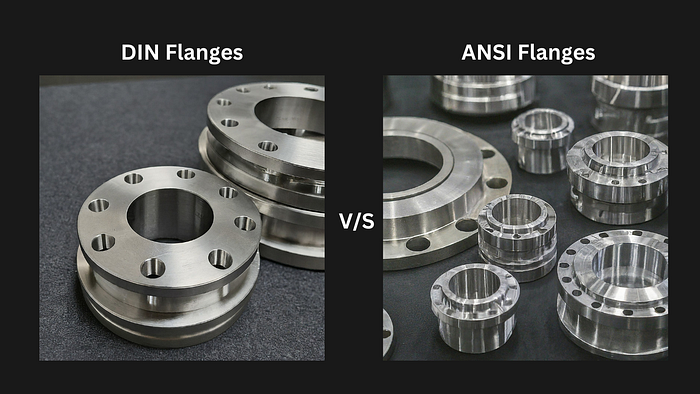

DIN Flanges vs. ANSI Flanges: A Comparative Analysis

Are you wondering how DIN flanges and ANSI flanges differ? Many people are. Whether you are a skilled engineer or have just started, it is vital to grasp the fundamentals of the two most widespread types of flanges.

DIN and ANSI flanges do similar things, but people make their own rules and use them for different jobs.

In this guide, we’ll cover the main differences between DIN and ANSI flanges, analyze their sizes, determine how much pressure they can withstand, determine the material from which they comprise, and discuss other things.

Upon completion, you will understand which flange suits you best among all the types of flanges and make well-informed choices for your projects or work in related fields.

DIN Flanges: What Are They?

Let’s begin with DIN flanges. DIN means “Deutsches Institut für Normung,” which is the “German Institute for Standardization” in the English language. These metal rings from Germany follow the same sizes and types.

DIN flanges are like puzzle pieces that come in lots of sizes, shapes, and materials. They are present in the chemical, petrochemical, and manufacturing sectors.

What about ANSI Flanges?

In addition, the ANSI flanges, which “ANSI” stands for “American National Standards Institute,” are equally familiar in the US and other countries with the US standards.

When people talk about one type of flange called DIN, another type called ANSI also has rules about their size, what they comprise, and what they do. You can find their use in various industries, including oil and gas, construction, and water treatment.

Key Differences: Size, Pressure, and Materials

Now, let’s have a look at both. The most distinct feature of the DIN and ANSI flanges is in their sizes and dimensions. DIN flanges usually follow the metric system, whereas ANSI flanges use the imperial system.

Another distinction between the two is their pressure ratings. ANSI flanges typically have pressure ratings exceeding that of DIN flanges. These standards allow the ANSI flanges to bear higher pressures and temperatures, which is why they find common use in more intense environments.

Besides, the materials used for production can be different, too. Although both types are manufactured from alloy steel, such as alloy steel, carbon steel, and stainless steel, they vary in the grades and compositions of the metals, thereby affecting the corrosion resistance and toughness.

Performance and Efficiency: Which One Stands Out?

Every type of flange has its upsides and downsides. DIN flanges come with precision engineering and standardization of sizes, making them effortless to install and interchange with others. Therefore, they may not withstand the higher pressure and temperature conditions demanded by some processes.

However, ANSI flanges provide high reliability and performance in severe environments. This allows them to stand tall against higher temperatures and pressures, expanding the safety range.

Cost Considerations: Which Is More Affordable?

Cost is the main consideration in every decision-making. DIN flanges are generally cheaper at the beginning due to their lower production costs and wider distribution. On the other hand, they might demand frequent maintenance or replacement under severe circumstances that might bring forth long-term expenses.

ANSI flanges may have higher initial investment, but their durability and high-quality performance can be attributed to low long-term maintenance costs. It is important to consider the initial cost and the future savings while evaluating different options.

Installation and Maintenance: What You Need to Know

Installing and keeping flanges in place is a job that needs a careful approach to details. The DIN flanges will allow easy installation due to the standardized dimensions and the bolt pattern. Regular examinations for wear and tear normally follow and replacements are done whenever necessary.

ANSI flanges may be difficult to install correctly because of their higher pressure rating requirements. Correct alignment and tightening of bolts will avoid leakage of oil. Nevertheless, when installed properly, ANSI flanges do not take additional maintenance costs since they don’t generate downtime.

Industry Standards and Regulations: Are You Compliant?

Both DIN and ANSI flanges, while conforming to different standards, must follow certain regulations to provide safety and performance. DIN flanges meet European standards and ANSI flanges observe the American regulations.

It is crucial to confirm local rules as well as industry standards to make sure that codes and requirements are met. Non-compliance can result in serious consequences like expensive fines, downtime, or even injuries.

Choosing the Right Flange for Your Needs

Finally, the ANSI and DIN flanges have both merits and demerits. DIN flanges are comprised of standard dimensions and low cost, whereas ANSI flanges tend to offer higher performance and difficultness.

If you are looking to select a suitable flange for your application, consider factors such as the pressure requirements, the temperature limits, the material compatibility, and the long-term costs. You should make sure to involve industry experts and suppliers in your decision-making since their feedback can help you make an informed and budget-friendly decision.

If you choose DIN flanges or ANSI flanges, always put safety, reliability, and compliance with industry standards first to guarantee seamless operation and utmost ease.
