Differences Between Forged and Cast Carbon Steel Flanges

Flanges are necessary for connecting pipes, valves, pumps, and other equipment in various piping systems. Before comparing the forged carbon steel flanges and the cast carbon steel flanges, it is crucial to understand which of the two flanges to use in the project.

All of them have their strengths and weaknesses, and the result, safety, and cost of the project will depend on the option selected.

Here is a detailed comparison between them.

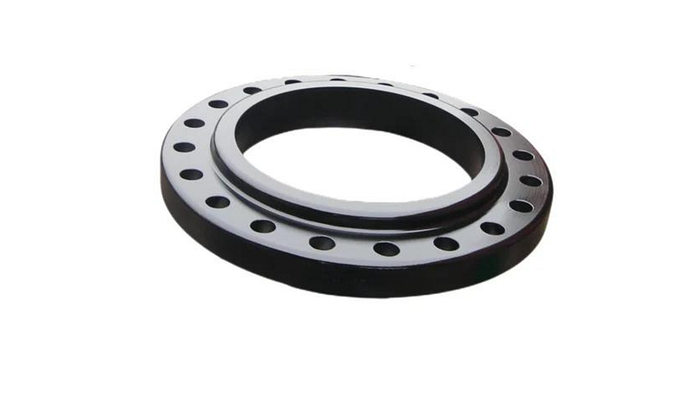

What are Forged Carbon Steel Flanges?

Forged carbon steel flanges get ready through a process called forging. In this process, carbon steel is heated to a high temperature until it becomes soft. The steel is then shaped using pressure, either by hammering, pressing, or rolling. This process makes the steel stronger and more durable.

Key Features of Forged Flanges

• Strength

The process of forging used to manufacture these flanges is one that makes them incredibly strong. They can work under pressure and do not get stressed easily; hence, they do not crack under pressure.

• Durability

Forged flanges are very durable, and they have a long service life. That is why they are wear-resistant, especially in areas requiring high durability.

• Better Grain Structure

Forging increases the metallurgical structure of the steel, therefore improving its mechanical characteristics. This means forged flanges offer a higher resistance to fall in extreme conditions.

Common Uses of Forged Flanges

Carbon steel flanges that get forged are suitable in businesses where pressure is greatly applied and in extreme circumstances. These sectors include oil and gas, chemical processing, and power generation. They are most helpful in situations where safety is a key factor to consider.

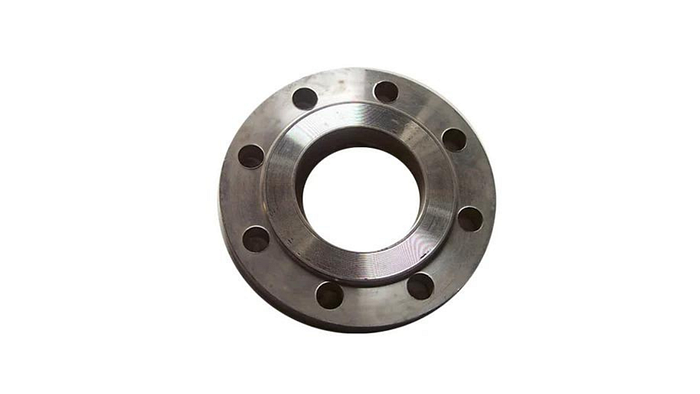

What Are Cast Carbon Steel Flanges?

Cast carbon steel flanges are produced using another method known as casting. This involves the pouring of molten carbon steel into a mold and letting it cool and solidify. Once the steel hardens, it takes the shape of the mold, and the component formed includes the flange.

Key Features of Cast Flanges

1.Cost-Effective

Compared to forging, the casting process is easier and more economical. For this reason, cast flanges are usually cheaper than forged flanges.

2. Complex Shapes

The casting process is more advantageous than forging since making complex shapes and patterns at this stage is easier.

3. Lower Strength

Although cast flanges are tough, there is no comparison to forged flanges in terms of strength. They are more vulnerable to breaking when pressure or impact applies to them.

Common Uses of Cast Flanges

Cast carbon steel flanges are best for use in situations of comparatively low pressure and conditions that are not severe. These include plumbing, LP gas pipelines, and general industrial use. They are ideal when one needs to work under a strict budget constraint and do not make the need for extra strength.

Comparing Forged and Cast Carbon Steel Flanges

Now that you have understood the basics of forged and cast carbon steel flanges, let’s present a comparative analysis.

1.Strength and Durability

Forged flanges, hence, promise better strength and longer usability than cast flanges. The forging process starts by running parallel to the body’s grain structure, improving its mechanical properties. Cast flanges, however, tend to possess a more irregular grain structure, thereby making them less strong than the other.

2. Cost

Cast flanges are comparatively cheaper than forged flanges. It involves less heat treatment than the other method, making the process more affordable. Although it is cheaper, it is relatively weaker and durable as compared to other well-established brands.

3. Application

Forged flanges are better suited for high-pressure and high-stress environments. They are best for use in critical applications where failure is not an option. Cast flanges are better for low-pressure applications where cost is a more significant concern than strength.

4. Longevity

The forged flanges normally last longer than the cast flanges as they are stronger and do not wear out easily. In the long run, this makes it a better option than buying forged flanges because this will save the time wasted in replacing and fixing the fake flanges.

5. Ease of Manufacturing

It also enables the formation of unique designs and forms, which can be advantageous in some scenarios. Forging has lesser freedom in design, but it provides a uniform and stronger surface of the product.

Which One Should You Choose?

Deciding which flange is appropriate between forged and cast carbon steel flanges depends on several factors. Forged flanges are suitable when the process entails high pressure at high temperatures or comes with stringent safety considerations. They provide enhanced strength and durability, making them ideal for use in challenging situations.

However, if your project is relatively easy and the cost factor becomes critical, you can go for cast flanges. They are cheaper, and since they can easily molded into various shapes, they can be suitable in numerous applications.

Conclusion

One must understand the difference between forged and cast carbon steel flanges to make the right decision. Forged flanges are solid and offer superior corrosion resistance compared to other flanges used in accessories subjected to higher stresses. Cast flanges are comparatively less strong, but they are cheaper than forged flanges and much easier to design.

Each type of flange has its advantages and disadvantages, and based on knowledge of these aspects, one can choose the optimal type of flange for work to avoid problems such as injuries, low performance, and high costs during the implementation of the project.
