Common Applications Of Ring Type Joint (RTJ) Flanges In Industry

RTJ flanges refer to the Ring Type of Joint flange, which is a necessary part of industries. These flanges are high on pressure as well as high on temperature and are essential in domains where safety and reliability are significant.

When it comes to oil and gas, chemicals, power plants, shipbuilding, and beverage industries, ring-type joint (RTJ) flanges are an important element. Now, in this guide, we will identify and discuss various uses of RTJ flanges across various industries.

Understanding Ring Type Joint (RTJ) Flanges

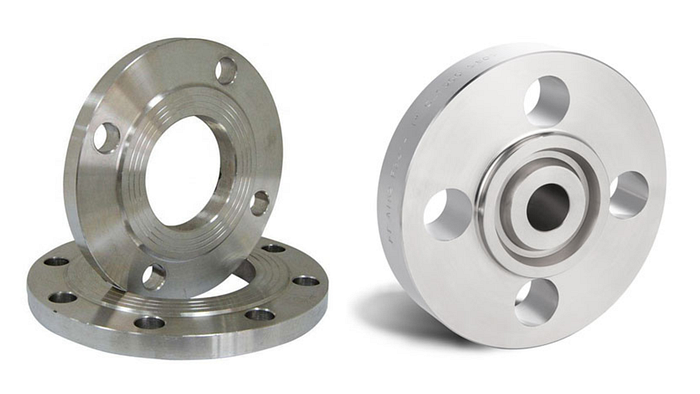

RTJ flanges are specific flanges that utilize a metallic ring gasket in their design and functionality. This fits into a hole machined on the flange face and clamps against the face, which provides a hermetic seal.

They come in various dimensions and comprises of materials like stainless steel, carbon steel, or alloy steel for such applications etc.

Some of the performance benefits of RTJ flanges include durability, reliability and high-pressure capability of the adjoining flanges.

Key Industries Utilizing RTJ Flanges

• Oil and Gas Industry

In the oil and gas industry, these RTJ flanges are very important, particularly in applications that involve elevated pressure and temperatures. These tools are widely employed in drilling scenarios, whether on land or at sea.

It is important to seal and provide a secure connection in the pipeline to avoid leakages and to act as seals to enhance the integrity of the pipeline. This is particularly crucial in climates that require safe operations to conduct in order to avoid unnecessary casualties.

• Petrochemical Industry

In chemical processing plants, where the usage of high pressure and high temperatures is standard, the petrochemical industry uses RTJ flanges.

Such flanges are common in several equipment, for example in reactors and in distillation columns, heat exchangers among others. RTJ flanges offer the assurance of reliable operations within the plant and contain the features required to deal with aggressive chemicals.

• Power Generation

RTJ flanges find common use in the power station industry, especially at nuclear and thermal power generating stations. These facilities are quite vital and the RTJ flanges are used indispensably to ensure the safety and dependability of high pressure systems.

They are applied in most of the boilers, turbines, and other vital parts which play an important role in the generation of power and safety of plant.

• Shipbuilding and Marine Industry

RTJ flanges are important in high-pressure systems in the shipbuilding and marine industry. They are employed in marine engines, piping systems and other equipments in which conditions are severe.

To increase the safety of ships and offshore structures it is necessary to use RTJ flanges, as they are able to successfully handle severe conditions of marine environment.

• Food and Beverage Industry

The food and beverage industry also uses RTJ flanges in sanitary and high-purity services. These flanges are required in equipment that encounters high-pressure steam to ensure hygiene and safety.

RTJ flanges are useful in conditions such as sterilization and pasteurization, where a seal is required to prevent leakage, which may contaminate the product.

Common Applications of RTJ Flanges

• Pipeline Systems

RTJ flanges are generally used in pipelines that transmit fluids which have high pressure and high temperatures. These flanges offer good sealing which helps to avoid any pipe leakage, thus maintaining the structural support of the pipeline. Oil and gas, petrochemicals, power generation are some industries that mostly demand RTJ flanges for their pipelines.

• Pressure Vessels

RTJ flanges are appropriate for systems that experience high pressure since they ensure a tight seal. These flanges are important for safeguarding pressure vessels applied in different fields, such as petrochemicals and power plants. Flanges from RTJ keep their surfaces tightly sealed to minimize accidents and maintain the vessel’s stability.

• Heat Exchangers

A number of system applications require high-pressure and high-temperature fluids, and heat exchangers rely on RTJ flanges. These flanges guarantee a good connection to avoid leakage and make sure that the heat exchanger’s working efficiency is not interfered with. RTJ flanges serve common types of heat exchangers like tube and shell heat exchangers and plate heat exchangers.

• Reactors and Boilers

When it comes to the reaction turbines and boilers, RTJ flanges are crucial due to aspects such as pressure and temperatures. These flanges allow for the flanges to be fit securely to prevent issues with the equipment, such as leaks, and guarantee its functionality. RTJ flanges have common use in chemical reactors, industrial boilers, etc.

Selection and Installation of RTJ Flanges

When choosing the RTJ flanges, factors such as material, pressure class, and temperature class must be considered. Proper installation is also important to ensure that the beads create a proper seal so as not to leak. Adhering to all industry standards and best practices goes a long way toward guaranteeing the performance of RTJ flanges.

Conclusion

The RTJ flanges play a vital role as industrial flanges to offer secure and proper functioning in applications that have high pressure and higher working temperatures. Whether it’s in the oil & gas industry or food & beverage processing, RTJ flanges assure safety and optimal performance within systems. People should understand common uses of RTJ flanges to ensure the smooth functioning of industries without compromising safety.
