8 Things You Didn’t Know About Carbon Steel Flanges

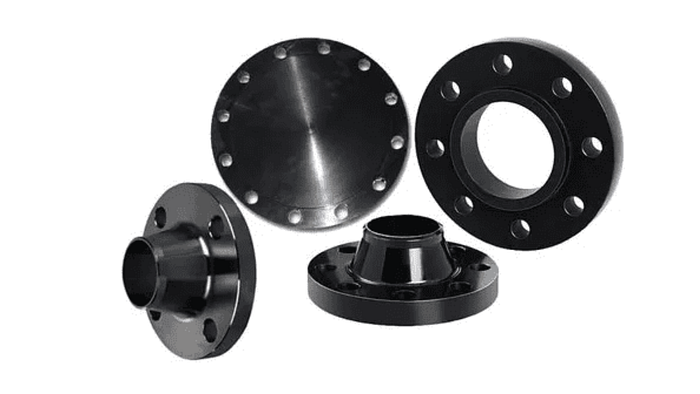

Carbon steel flanges are pivotal components in many industries as they connect pipes, valves, and other equipment in an assembly. Before selecting flange types for your application, you should determine the safety, dependability, and efficiency of your piping system. Carbon steel flanges are the most common flanges on the market and they come in a variety of styles.
Don’t worry if you need assistance choosing flanges for your project; we’ve got you covered. We’ve mentioned previously that you must consider certain things when choosing carbon steel flanges. So be ready for a voyage of the realm of carbon flange specifics and conditions.
1. Carbon Steel Flanges are not all the same
While carbon steel is a common material used in flange manufacturing, not all carbon steel flanges are created equal. They vary in composition and grades, with each grade tailored to specific performance requirements. Some common carbon steel grades used in flanges include ASTM A105, ASTM A350 LF2, and ASTM A694 spec grades F42 through F65. The most common of these is definitely A105. Choosing the correct grade is essential to ensure the flange can withstand the environmental conditions it will face.
2. Carbon Steel Flanges can be customized
One of the lesser-known facts you can request for carbon steel flanges is customization to meet the unique demands of a particular application. Customization options include varying the flange’s dimensions, pressure ratings, and face types. This flexibility allows engineers to design flanges that perfectly fit the requirements of their projects, ensuring optimal performance and safety.
3. They are built to withstand extreme conditions
Carbon steel flanges are renowned for their exceptional durability and resistance to high-temperature and high-pressure conditions in comparison to their cast iron predecessors. This remarkable resilience makes them ideal for various industries, such as chemical processing, oil and gas, and power generation. Whether you’re dealing with intense heat, or extreme pressure, carbon steel flanges can handle most anything.
4. Carbon steel flanges and their dimensions
Carbon steel flanges are available in various shapes, sizes, and dimensions. The most common shape of carbon steel flanges is the round flange with a flat or raised face. Additionally, they have numerous bolt-hole patterns — for instance, square, triangular, or oval patterns. We specialize in circular, concentric bolt patterns, which are the benchmark for ANSI / ASME B16.5 flanges. Examining the flange’s dimensions and bolt-hole pattern is essential before ordering it for your industrial application.
5. Carbon steel flange material
Manufacturers use different grades of carbon steel for fabricating carbon steel flanges, each grade with varying material properties. The most used carbon steel flange grades are ASTM A105 and ASTM A350 LF2. ASTM A105 is low carbon steel grade, and ASTM A350 LF2 is low temperature service variant of the same steel. It has higher tensile strength and toughness.
6. Welding
Using various techniques, you can easily weld carbon steel flanges to pipes for instance, via TIG welding, ARC welding, and MIG welding. It is essential to use the right welding technique to ensure a robust and reliable joint. There are possibilities of leakage or equipment failure in cases of inadequate welding, so make sure they clear post weld inspection.
7. Temperature
Did you know that ASTM A105 carbon steel flanges can endure temperatures up to 1000°F? On the other hand, the ASTM A350 LF2 can handle temperatures up to 800°F, and are rated for -50 deg F for cold climate applications. Determine your project requirement and select the suitable material grade and pressure rating for a specific application.
8. Environmental Impact
Carbon steel flange manufacturing can have some adverse effects on the environment, but this is no different than most other manufacturing processes. Manufacturers can recycle and use material again once disposed and reworked, which lessens the environmental impact of their production. When deciding between various materials for a particular application, it is crucial to consider the longevity of the flange material selected for your particular project.
Conclusion
Although carbon steel flanges are a crucial part of many industries, there is still much to learn about them once you get into the engineering requirements of a specific application. This blog post looked at eight things you still need to know about carbon steel flanges.
When choosing carbon steel flanges for an application, there are numerous elements to consider, such as potential galvanization, pressure rating requirements, material qualities, and operating temperatures. To guarantee adequate equipment operation and dependability, selecting the appropriate carbon steel flange for a given application is crucial.
